How to Measure a Gasket

How to Measure

  • Establish how the gasket mounts to the door. It should fall into one of four styles: screw on, snap-in, push-in, or panel gripper.
  • Compare your gasket to the Gasket Profiles page or your sample ring. Compare thickness, width and magnet width.
  • For flange-type gaskets specify dimensions from outside edge to outside edge, making sure to measure from the widest point of the gasket.
    For dart-type gaskets specify dimensions between the tips of the snap-in darts.


Make Sure to Check these Items

  • Note the number of sides. Most walk-in gaskets have only 3 sides.
  • Some gaskets do not have a magnet on the hinge side. If this is the case for a 3 sided gasket, be sure to note if the door is hinged left or right. For a 4 sided gasket, note which length has no magnet.


Measuring Gaskets

  • Gaskets are guaranteed to 1/8″ of specified dimensions.
  • All gaskets are measured outside corner to outside corner unless specified dart to dart.
  • Gaskets are custom made and are non-returnable.


RKG-ARD

  • Product Details
  • Brand Name Match

Color: Black

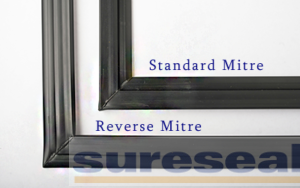

This is the standard mitre (flange on the inside)
The reverse mitre (flange on the outside) is RKG-ARD-RM



Equipment Brands: Ardco,Hobart/Koch,McCall,Norlake,Pinnacle,Stanley Knight,Tyler
